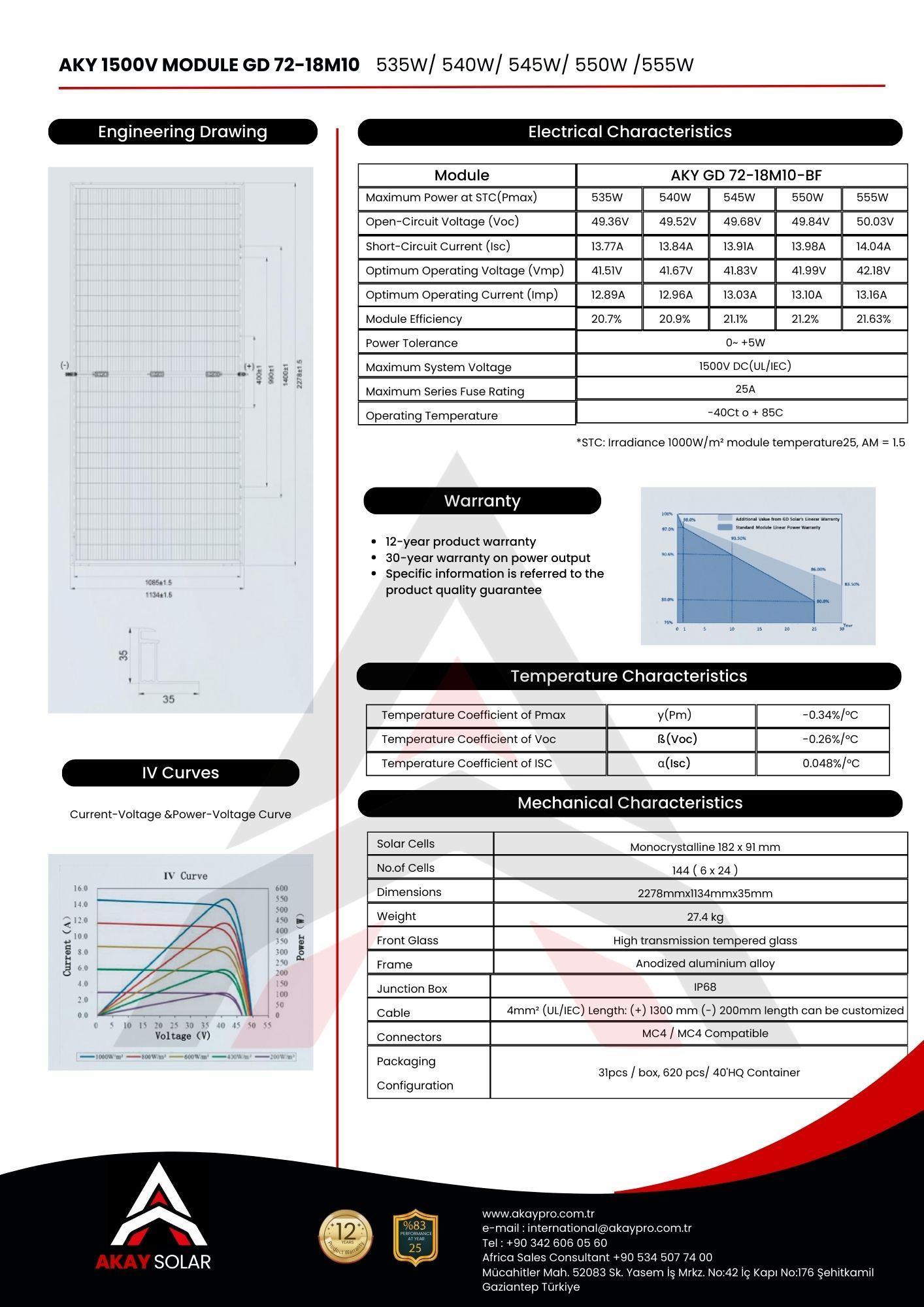

AKYGD 72 - 18M10

High Efficiency

with Half-cut Technology

535W/ 540W/ 545W/ 550W/ 555W

Big Size: Cell 182*91 - Monocrystalline

Module Efficiency: %21.3
No.of Cells: 144 (6x24)
Weight: 27.4 kg
Dimensions: 2278mm x 1134mmx x35mm

12 Ys Product Warranty

30 Ys Warranty on power output

5W Positive tolerance 0/+5W guaranteed

PID PID Resistant

Half Cut technology can reduce the internal power loss and improve component overall power. Excellent heat dissipation avoids hot spot production.

Microcrack resistant high performance transparent backsheet structure enhance reliability, triple EL tested of high quality control.

Entire module certified to with stand extreme wind (2400 Pa) and snow loads (5400 Pa).

10BB The optimized number and width of main gate lines. Maximize the light receiving area of components and reduce component power consumption.

Designed for high voltage systems of up to 1500 VDC, increasing the string lenght of solar systems and saving on BOS costs.

All the modules are sorted and packaged by amperage, reducing mismatch losses and maximizing system output.

AKYGD 72 - 18M10

AKYGD 72 - 18M10
