AKY72M-HC-HV Serisi

MBB HC MONOFACIAL FOTOVALTAİK MODULE 565-585W

AKY 182MM_N-TYPE Model

E182 mm silicon wafers, by combining multi busbar and Halfcell technology, redefine the series of high-efficiency modules. With the AKY 182MM_N-TYPE model, effectively integrating the technology, module efficiency and power output are significantly enhanced.

AKY72M-HC-HV Serises

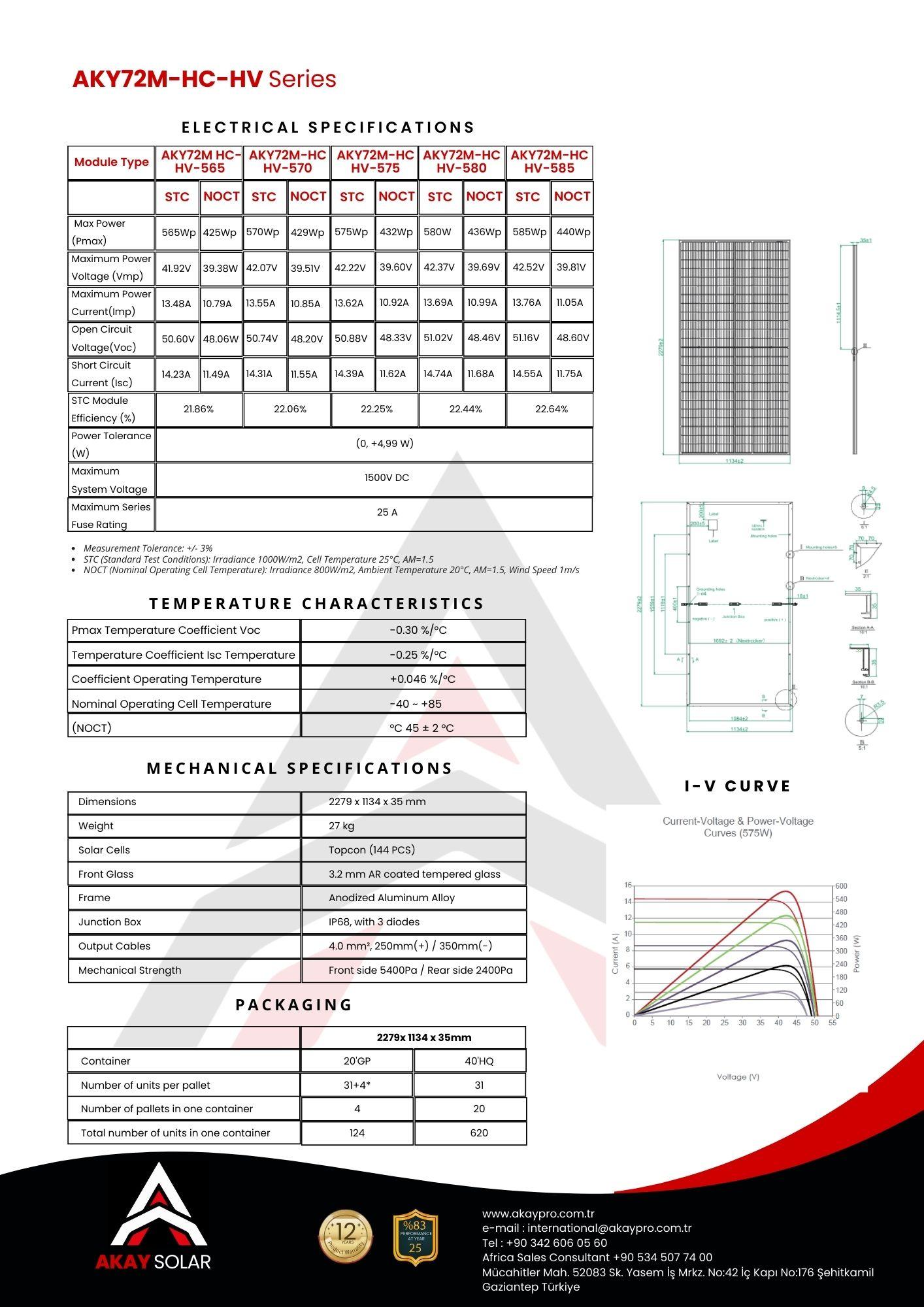

SPECLFLCATLONS

More compatibility, more power.

Minimizing shading effects for reduced power loss.

Competitive performance in low irradiance conditions.

SMBB Technology: Better light capture and current collection to increase module power output and reliability.

Challenging environmental conditions:

• Sand, acid and alkali, hail stones

• Resilience to 2400 Pa wind load and 5400 Pa snow load.

• Excellent Anti-PID performance with optimized serial production process and material control.

EL control at 3 points for ensuring the highest quality.

PRODUCTION FACILITY CERTIFICATIONS

ISO 9001:2015, ISO 14001:2015, ISO 45001: 2018, ISO 27001:2013,

ISO 10002:2004

PRODUCT CERTIFICATIONS

TS EN 61215, TS EN 61730,IEC 61215, IEC 61730, IEC 62804 (PID FREE)

WARRANTY

PRODUCT WARRANTY

LINEER PERFORMANCE WARRANTY
